Ground Screw Solar Mounting System

W Shape Ground Screw Mounting System

BROAD GS1 is applied to concrete foundations and solar power plants using ground screw piles. It is possible to shorten the construction period and reduce labor costs by making it to the pre-assembly frame which can be installed efficiently. It also guarantees maximum pressure load.
  • item no.:

    BROAD GS1 Mount
  • brand:

    BROAD
  • Material:

    Aluminum
  • Snow Load:

    Up to 200cm
  • Wind Speed:

    60m/s
  • Install Site:

    Open Terrain
  • Foundation Type:

    Ground screws
  • product details

Overview

BROAD GS1 ground mounting system is suitable for both residential projects and commercial projects. With innovative design, rigorous simulation analysis and strong anti-wind & snow and also seismic capacity, BROAD GS1 ground mounting system saves you a lot of installation time and labor cost.

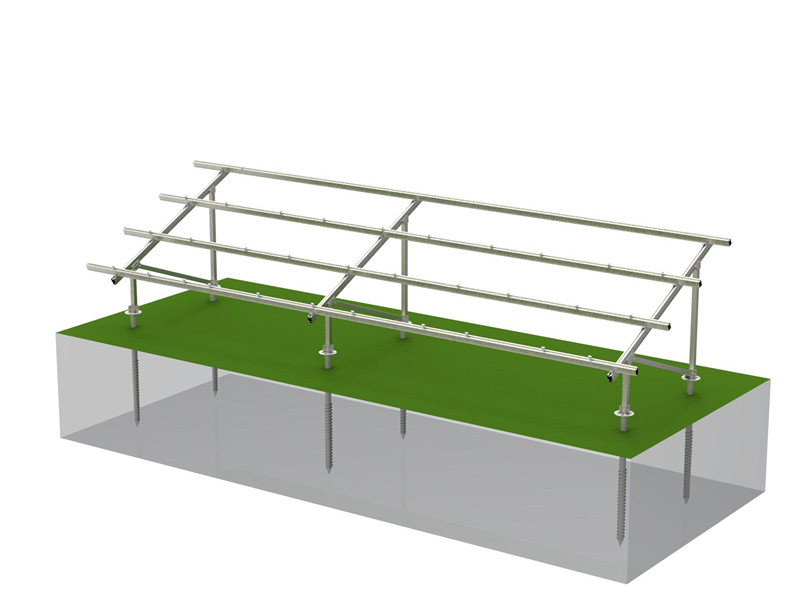

ground screws foundation solar mounting structure


Features

1. Full anodized for structure and all the components.

2. Highly per-assembly structure before shipment in the factory, which saves installation time and cost in the field.

3. Hot-dip galvanized for ground screw to avoid corrosion.

4. The solution is cost effective.

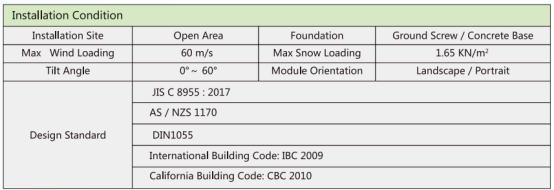

Installation condition

solar racking system bracket

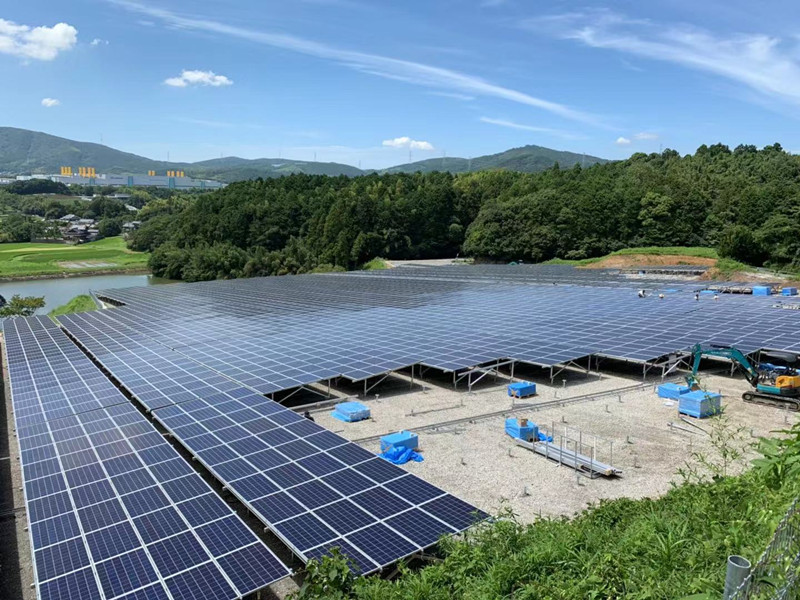

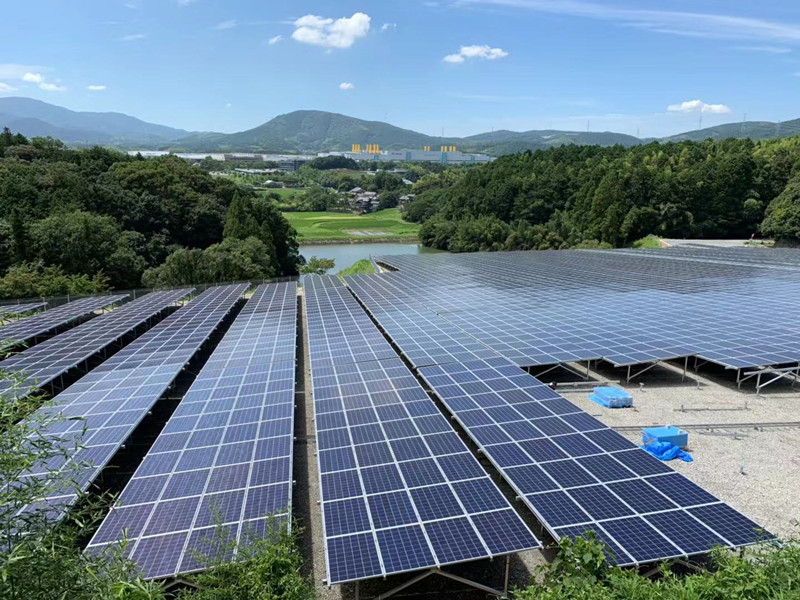

Pictures of mount with ground screw

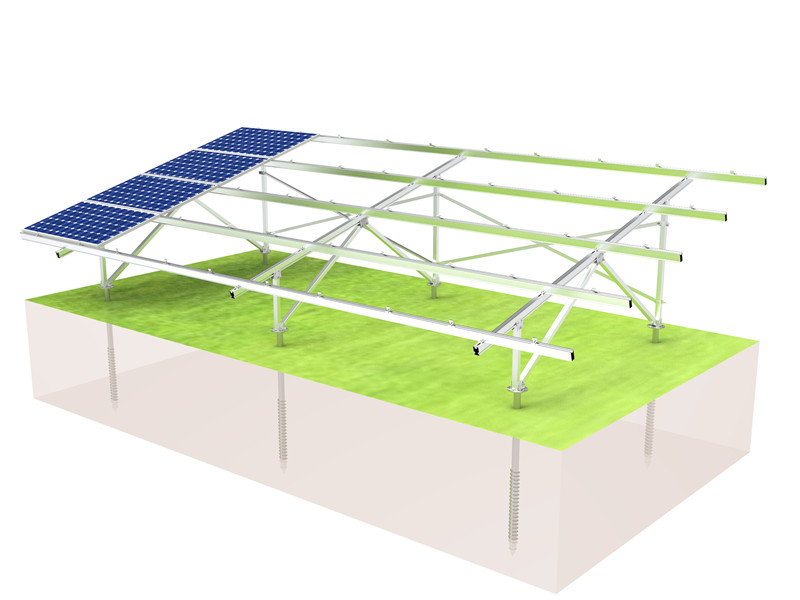

solar mount ground screw

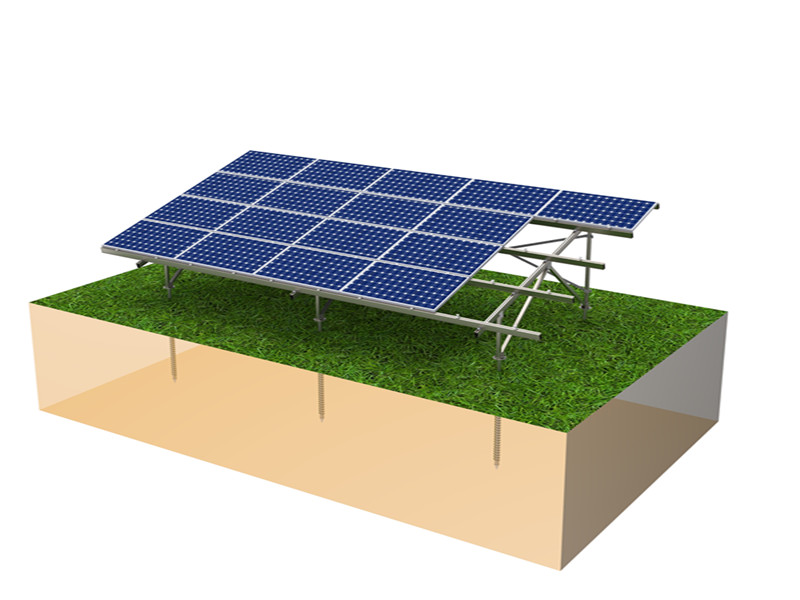

pv panel array of mounting rack

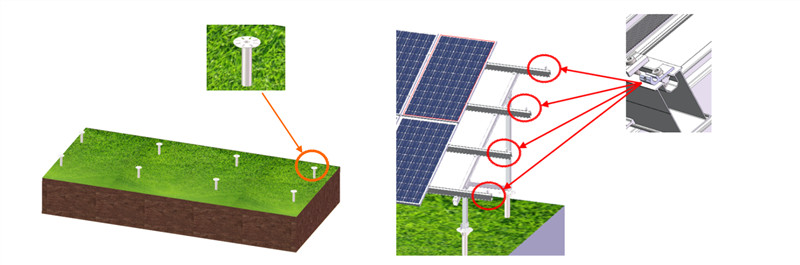

pre-assembled solar mount bracket

FAQ

Q1 : Is ground mounted solar cheaper?

A1 : Generally, ground mount solar panels cost a bit more than rooftop solar on a per-watt basis because of additional labor and permitting that may be required for the installation.


Q2 : How do ground screws work?

A2 : The foundations are screwed into the ground to depths typically between 1.2m and 5.0m using specialist equipment. Once installed loads are transferred to the subsurface layers of soil and rock providing significant load-bearing capacity by friction, end bearing, or a combination of both.
