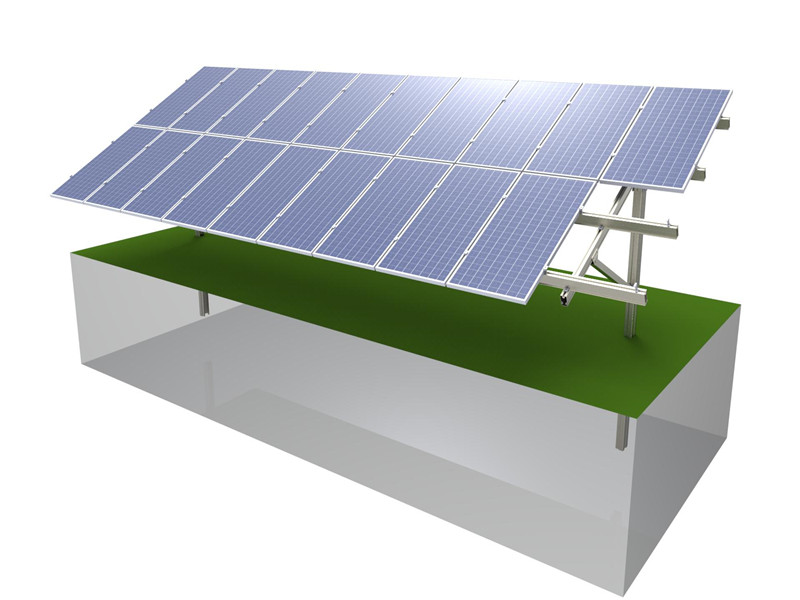

Piling ground solar mounting structure is the most suitable solution for inclined land like hillside area.
item no.:
BROAD GS2 Mountproduct orgin:
Xiamen,Chinabrand:
BROADpayment:
TTMaterial:
Aluminum or Q235BSnow Load:
Up to 200cmWind Speed:
Up to 60m/sInstall Site:
flat or uneven landFoundation Type:
Piling postOverview
BROAD GS2 uses single column pile driving foundation allows you to install it on the uneven terrains. The combination of professional rail design and highly compatible parts make it easy to install. In addition to the low weight of the material, the strength is high, and the construction time and cost of the customer are lowered. The system can be corresponding to the east, west, north and south directions, Japan cases are more than 300 MW up to now.
Features
1. Various piling support types available for soil condition choose.
2. Ground mounted pv structure part can be aluminum material or Q235B carbon steel.
3. Adjustable tilt ground mount solar solution is welcome to customized design.
4. Very practical for large scale solar PV projects.

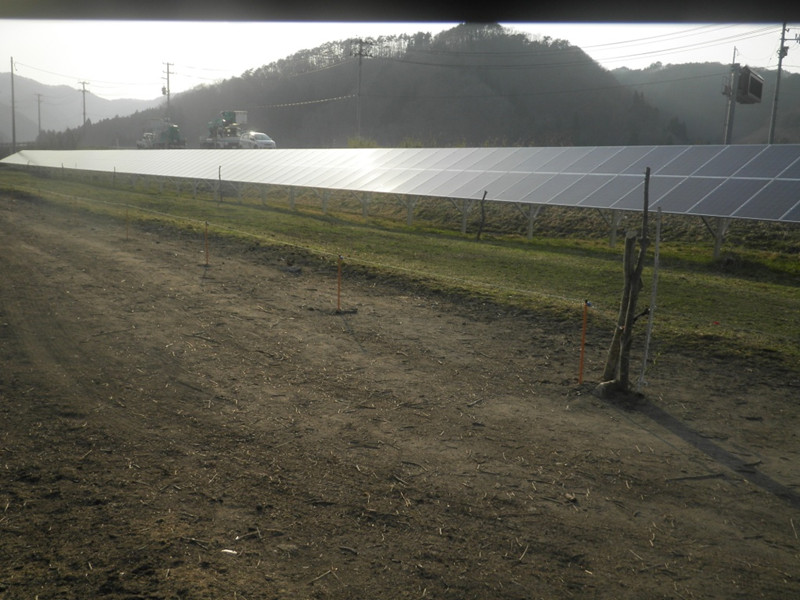

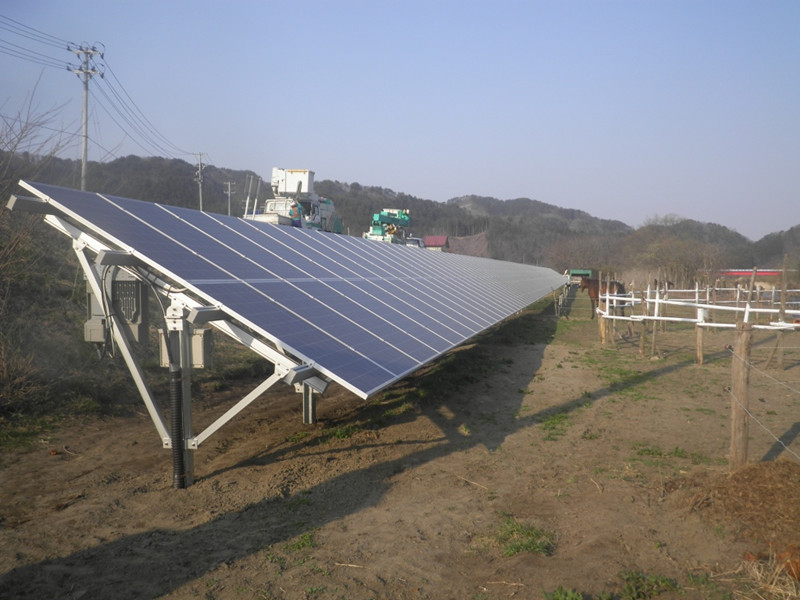

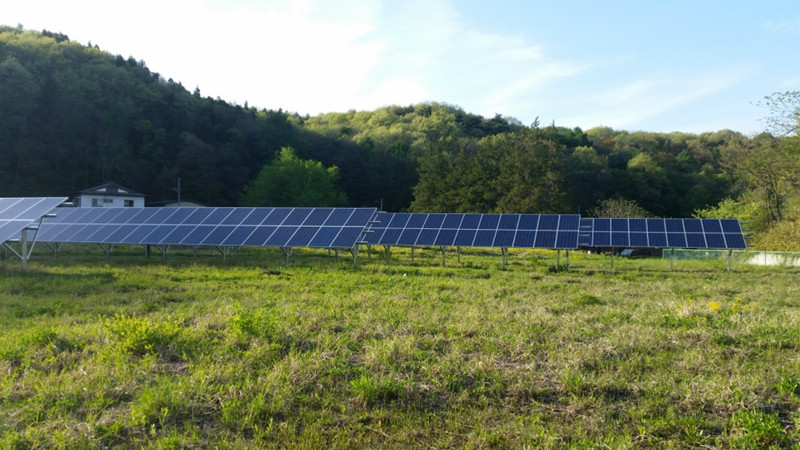

Pile mounting structure on flat land

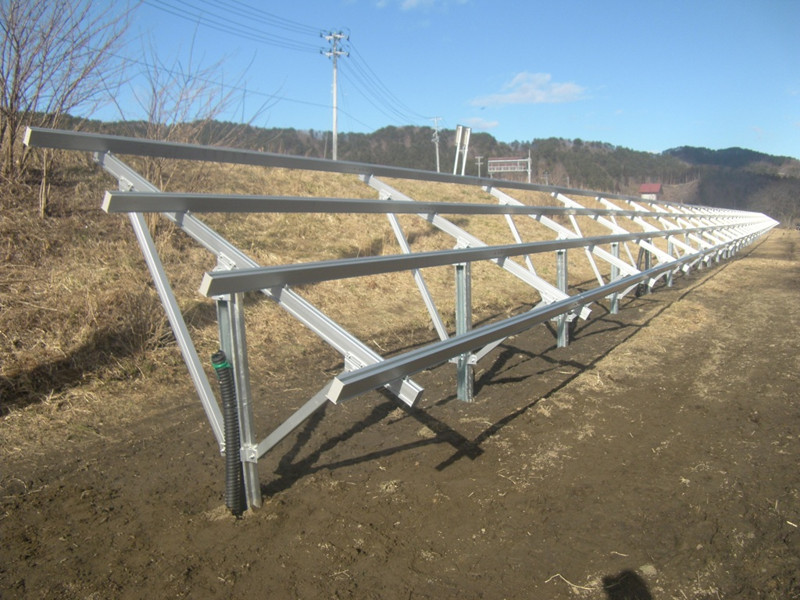

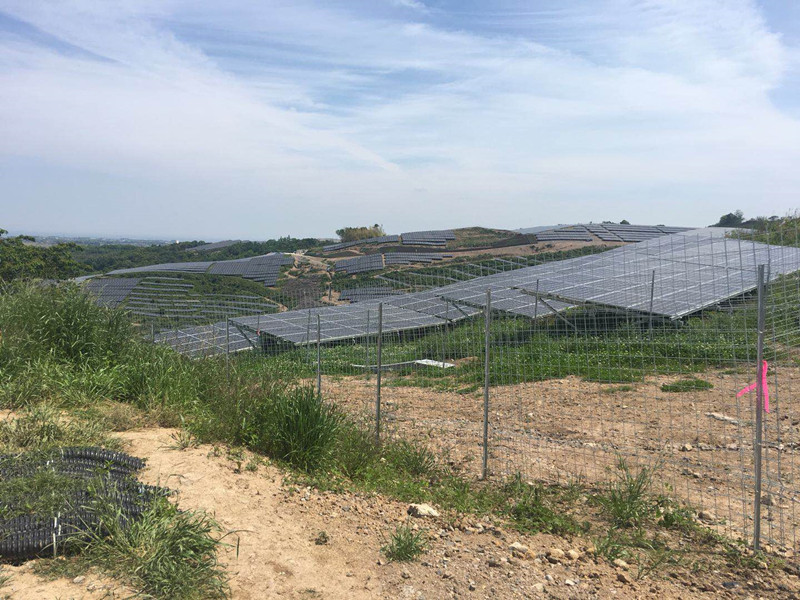

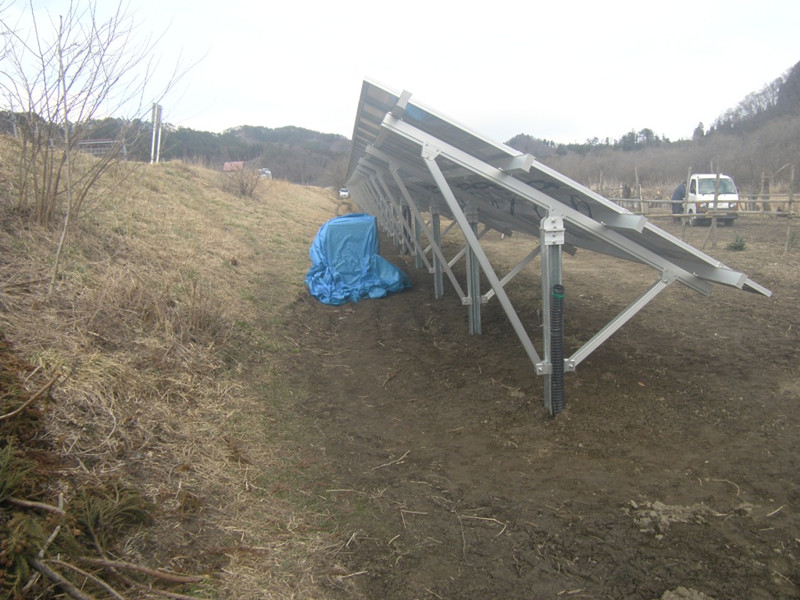

Pile mounting structure on inclined land
We also offer ground solar mount structure,that are placed to the south, enabling the panels to catch the sun during the longest possible periods of the day.
FAQ
Q1 : What is module mounting structure?
A1 : Photovoltaic mounting systems (also called solar module racking) are used to fix solar panels on surfaces like roofs, building facades, or the ground. These mounting systems generally enable retrofitting of solar panels on roofs or as part of the structure of the building (called BIPV).
Q2 : How do you ground a solar panel mount?
A2 : Standard ground mounts use pile driven into the ground to hold your solar panels up at a fixed angle.Using C-Post single column pile driving foundation allows you to install it on the inclined land.
